Tomei

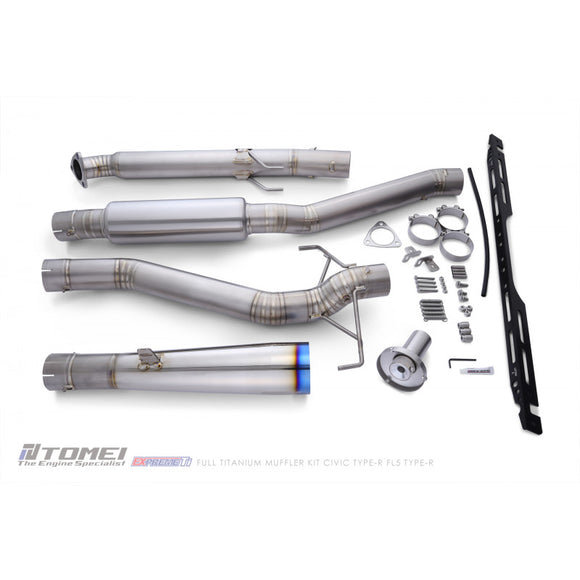

FULL TITANIUM MUFFLER KIT EXPREME TI CIVIC TYPE-R FL5 TYPE-R
FULL TITANIUM MUFFLER KIT EXPREME TI CIVIC TYPE-R FL5 TYPE-R
Regular price
$1,850.00
Regular price
$1,950.00
Sale price
$1,850.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FULL TITANIUM MUFFLER KIT EXPREME TI CIVIC TYPE-R FL5 TYPE-R
TB6090-HN06D
ITEM DESCRIPTION
| MAKER | ENGINE | MODEL |
| HONDA | K20C | CIVIC TYPE-R FL5 |
FULL TITANIUMU MUFFLER SPECIFICAITON
| TOMEI | OEM | ||
| TYPE-R | TYPE-D | ||
| PART No. | TB6090-HN06D | TB6090-HN06E | - |
| MATERIAL | TITANIUM | - | |
| MAIN PIPE DIAMETER | 3.2inch [80.5mm ] |
3.2inch [80.5mm ] |
2.4 inch [60.0mm] |
| MAIN PIPE THICKNESS | 1.0mm | - | |
| SUB SILENCER DIAMETER | 4.7inch [118.0mm] |
4.7inch x 2 [118.0mm x 2] |
4.88 inch [124.0 mm] |
| SUB SILENCER THICKNESS | 1.0mm | - | |
| SILENCER DIAMETER | - | 5.3inch x 2 [135.0mm x 2] |
- |
| SILENCER THICKNESS | - | 1.0mm | - |
| EXIT DIAMETER | 4.5inch [115.0mm)] |
4.5inch x 2 [115.0mm x 2] |
3.3inch*2 4.33inch*1 [86.0mm*2 110.0*1 ] |
| EXIT THICKNESS | 1.0mm | - | |
| FLANGE THICKNESS | 8.0mm | 6.0mm | |
| WEIGHT | 16.0lbs [7.1kg] |
25.0lbs [11.3kg] |
41.0lbs [18.3kg] |
Only muffer installed
| TYPE-R | TYPE-D | |||
|
91db | 91db | ||
|
95db | 98db | ||
| without Sound Reducer |
105db | 107db |
This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.
TYPE-R
