Tomei

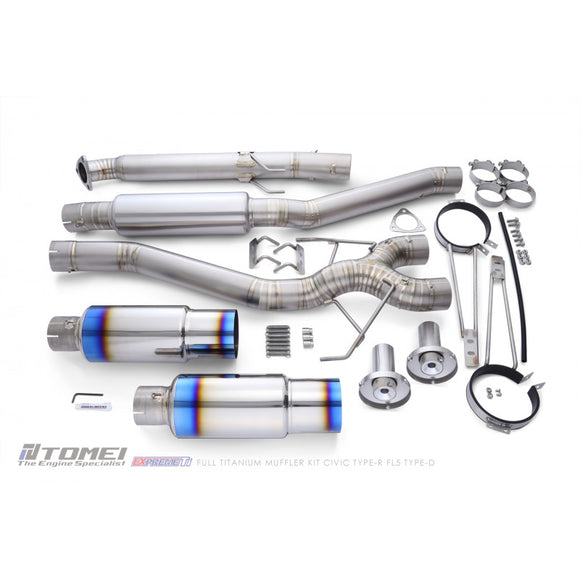

TOMEI - FULL TITANIUM MUFFLER KIT EXPREME TI CIVIC TYPE-R FL5 TYPE-D

Name: TOMEI - FULL TITANIUM MUFFLER KIT EXPREME TI CIVIC TYPE-R FL5 TYPE-D
Brand: Tomei
Price: 2525.0 CAD
Availability: InStock

$2,525.00

~~$2,625.00~~ $2,525.00

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

TOMEI FULL TITANIUM MUFFLER KIT EXPREME TI CIVIC TYPE-R FL5 TYPE-D

TB6090-HN06E

ITEM DESCRIPTION

MAKER	ENGINE	MODEL
HONDA	K20C	CIVIC TYPE-R FL5

FULL TITANIUMU MUFFLER SPECIFICAITON

	TOMEI		OEM
	TYPE-R	TYPE-D
PART No.	TB6090-HN06D	TB6090-HN06E	-
MATERIAL	TITANIUM		-
MAIN PIPE DIAMETER	3.2inch [80.5mm ]	3.2inch [80.5mm ]	2.4 inch [60.0mm]
MAIN PIPE THICKNESS	1.0mm		-
SUB SILENCER DIAMETER	4.7inch [118.0mm]	4.7inch x 2 [118.0mm x 2]	4.88 inch [124.0 mm]
SUB SILENCER THICKNESS	1.0mm		-
SILENCER DIAMETER	-	5.3inch x 2 [135.0mm x 2]	-
SILENCER THICKNESS	-	1.0mm	-
EXIT DIAMETER	4.5inch [115.0mm)]	4.5inch x 2 [115.0mm x 2]	3.3inch2 4.33inch1 [86.0mm2 110.01 ]
EXIT THICKNESS	1.0mm		-
FLANGE THICKNESS	8.0mm		6.0mm
WEIGHT	16.0lbs [7.1kg]	25.0lbs [11.3kg]	41.0lbs [18.3kg]

Only muffer installed

TYPE-R

TYPE-D

with
Sound
Reducer ver.2

91db

with
Sound
Reducer

95db

98db

without
Sound
Reducer

105db

107db

This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.
